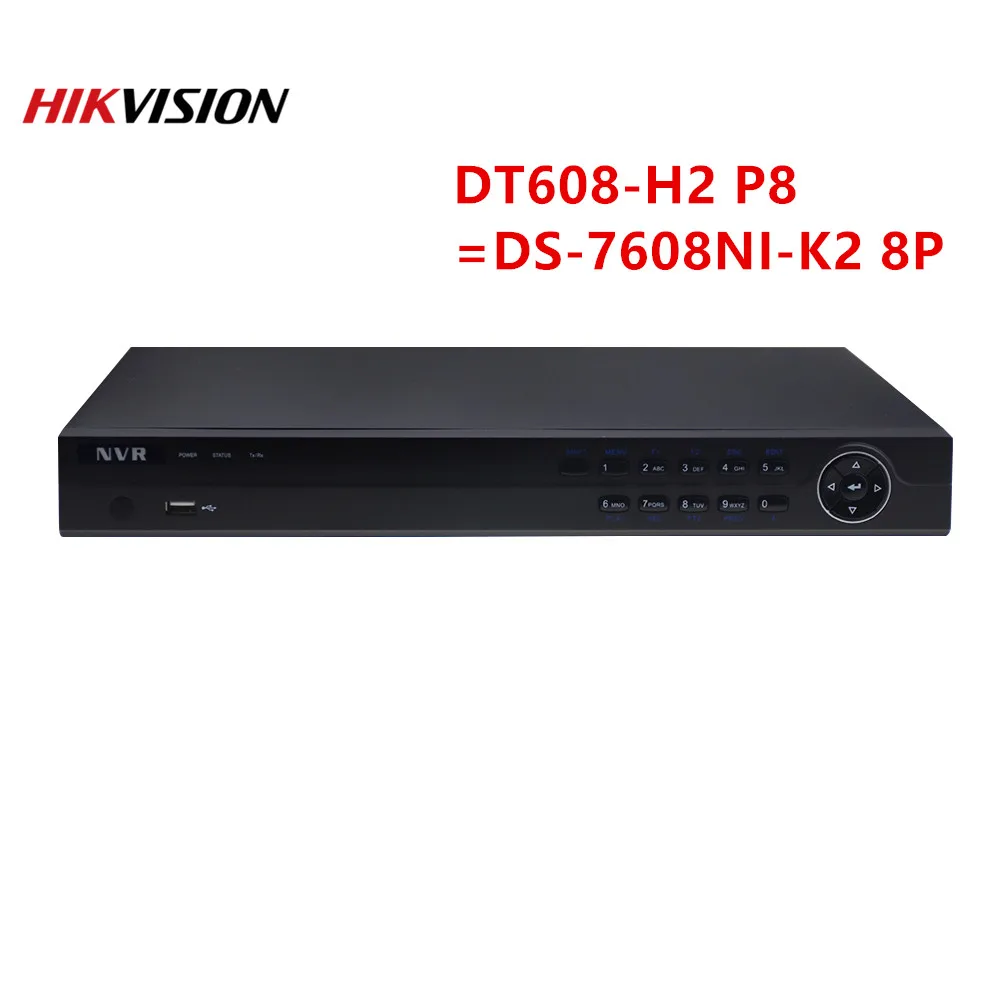

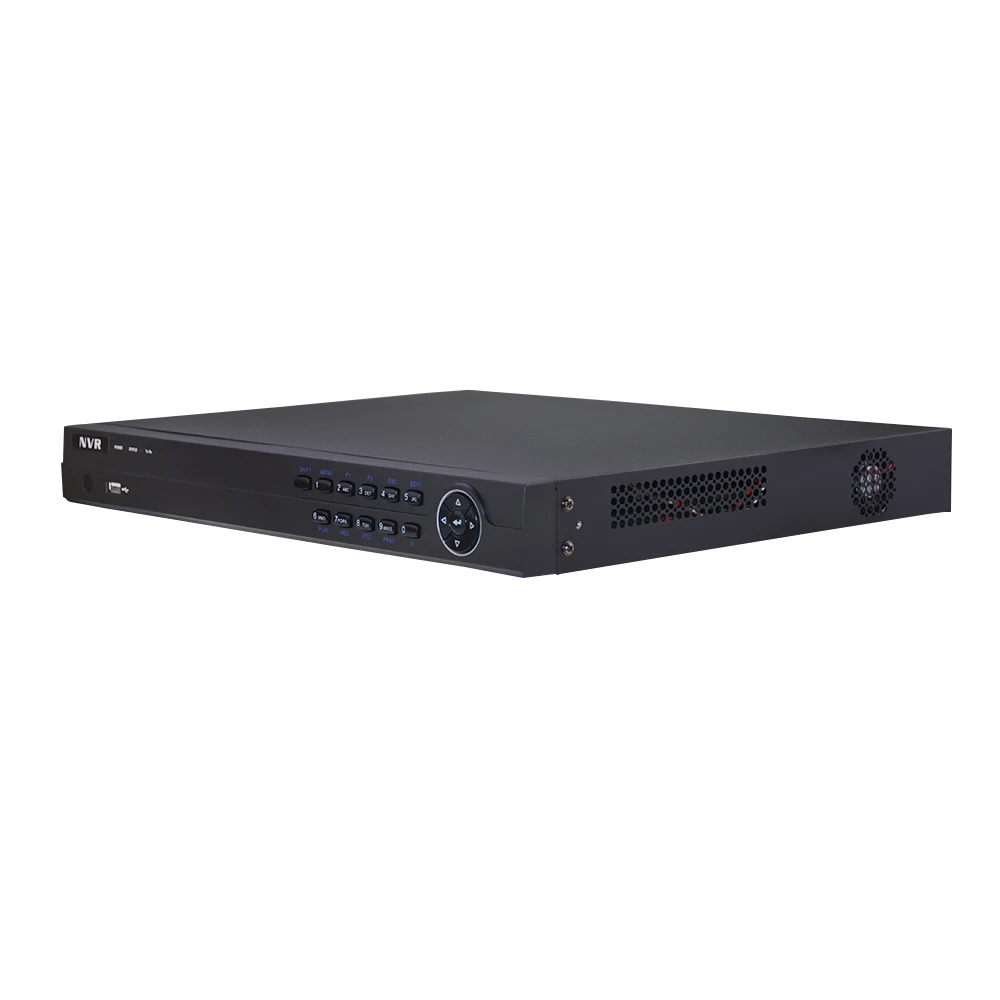

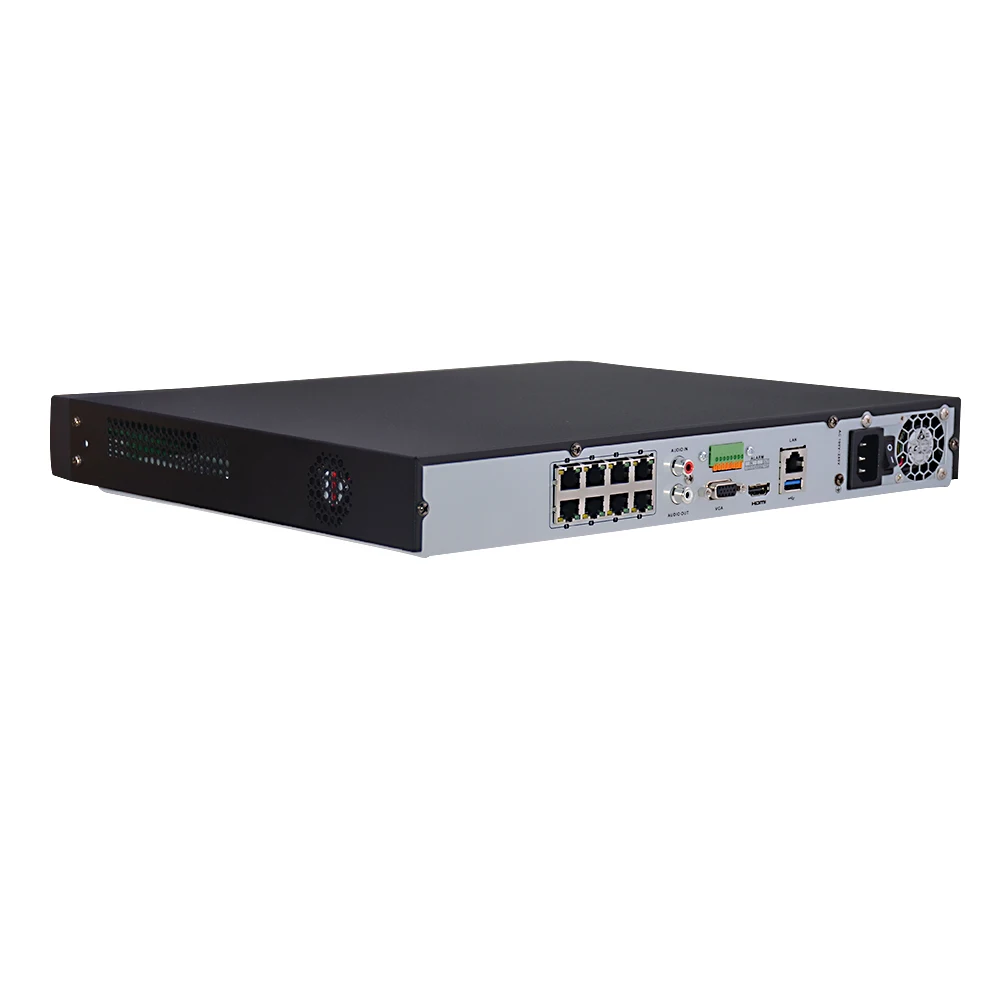

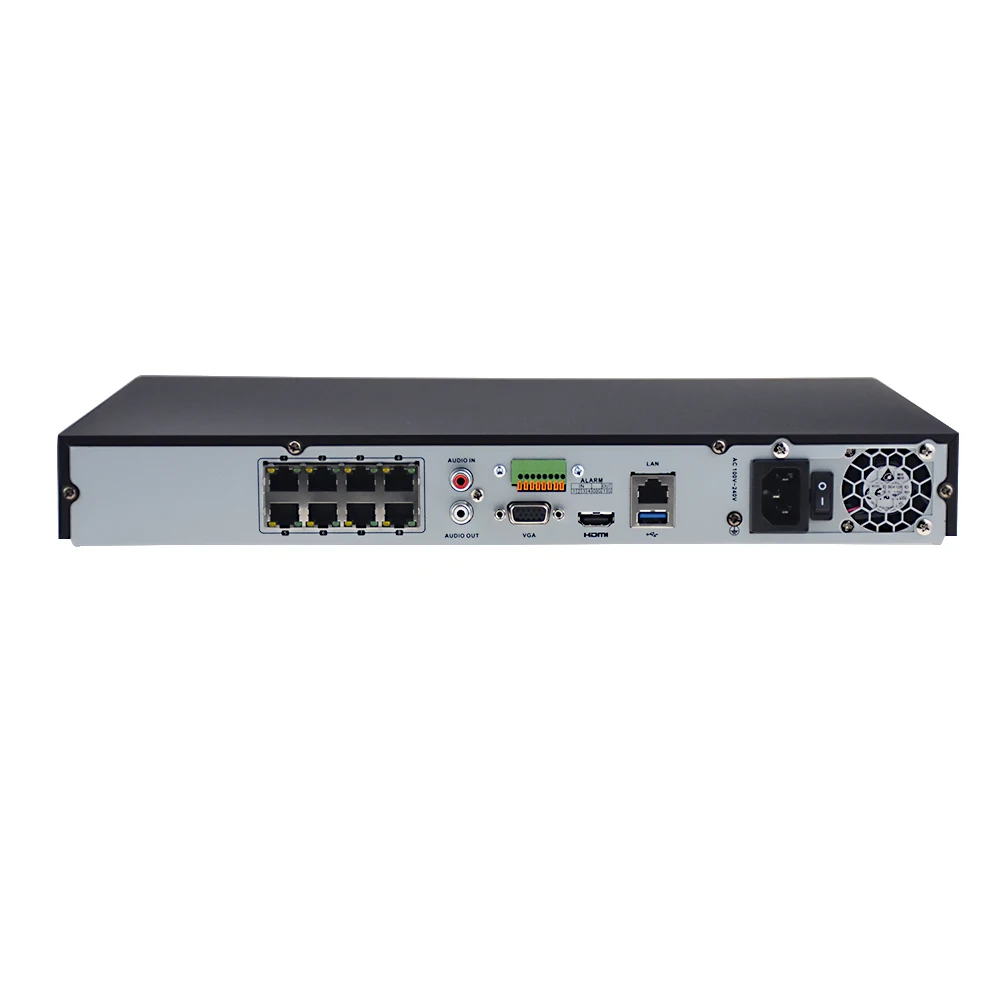

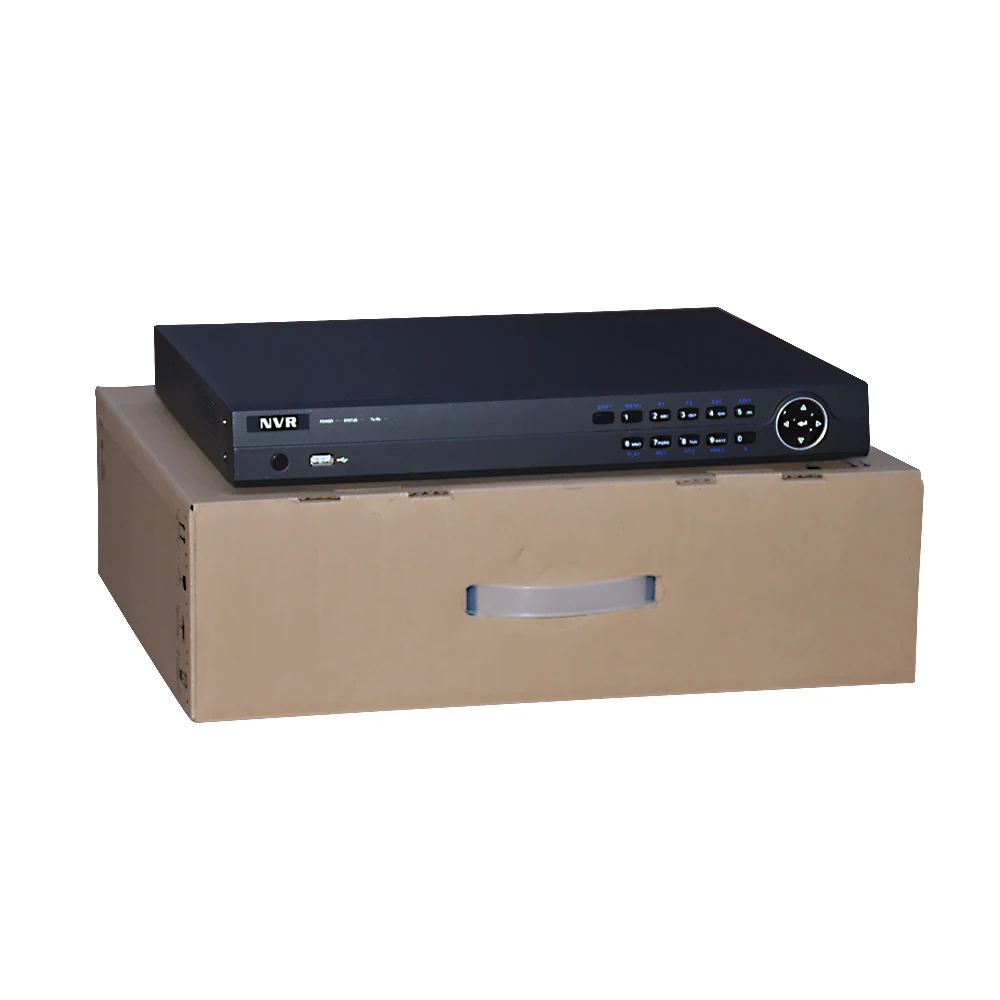

Hikvision OEM NVR DT608-H2/P8=DS-7608NI-K2/8P 4K video recorder 8CH 2SATA 8 POE ports Plug and Play nvr for CCTV

Brand Name HIKVISION

Technology Network

Audio Output 1CH RCA

Hard Drive Size 3.5''

Video Input Interface RJ45

Network Protocol TCP/IP

Supported Operating Systems Microsoft Windows 2000

Supported Operating Systems Microsoft Windows ME

Supported Operating Systems Microsoft Windows XP

Supported Operating Systems Mac os

Supported Operating Systems Microsoft Windows Vista

Supported Operating Systems Microsoft Windows 98

Supported Operating Systems Microsoft Windows 7

e-Cloud(P2P) YES

Video Output 1CH HDMI 1920X1080 60Hz

Video Output 1CH VGA 1280X1024 60Hz

Hard drive Interface Type SATA

Communication Interface RS232

Supported Mobile Systems iPhone OS

Supported Mobile Systems Android

Video Resolution 1200MP

Compression Format H.264

Compression Format MPEG-4

Compression Format H.265

Network Interface RJ45 10/100M

Model Number DT608-H2/P8

IP Mode Dynamic IP address

Alarm Action Local Alarm

POE 8 Port

Video Standard NTSC

Video Standard PAL

Audio Input 1 RCA

Wireless Security WPA

Backup Type Hard Drive

Hikvision OEM NVR DT608-H2/P8=DS-7608NI-K2/8P 4K video recorder 8CH 2SATA 8 POE ports Plug and Play nvr for CCTV Feature Video/Audio Input Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kΩ) IP video input: 8-ch Network Incoming bandwidth: 80Mbps Outgoing bandwidth: 160Mbps Video/Audio Output HDMI Output: 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF VGA Output: 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz Decoding Capability: 8-ch@1080P Live view / Playback: 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Hard Disk SATA: 2 SATA interfaces for 2 HDDs Capacity: Up to 6TB capacity for each HDD External Interface USB Interface: 2, USB2.0 Alarm In: 4-ch Alarm Out: 1-ch POE Interface: 8 independent 10 /100 Mbps PoE Ethernet interfaces General Power Supply: 100 to 200 VAC Consumption(without hard disk and POE): ≤ 15 W Working Temperature: -10 oC ~ +55 oC (+14 oF~ + 131 oF) Working Humidity: 10 % ~ 90 % Chassis: 385 mm chassis Dimensions: 385 × 315× 52 mm (15.2" 12.4" 2.0") Weight(without HDD): ≤ 3 kg (6.6 lb) Detials PC Client PACK List: NVR*1 Power Cable*1 Mouse*1 Network*1 HDD Cable*2 CD*1 HDD Screw*1 lot User Manual*1
